Which voltage versions are available?

AC-BI01 Built-In Ice Bath Chiller is available in 220-240V / 50Hz (EU plug). Tell us your destination market and we will confirm the plug type and certification for it.

Can this model be customized with a specific layout?

Yes, we can customize the cooling system layout for your cold plunge tub according to your preferences and the actual space available.

Ice Bath Chillers · Built-In

AC-BI01 | 1HP / 2HP Built-In Water Chiller (Cooling or Cooling & Heating)

A built-in unit that sits inside the tub or its surround, leaving the finished installation clear of an external chiller.

1HP / 2HP compressor with 2720 W / 5200 W cooling capacity
Cools water down to 0 °C / 32 °F
50 L/min (3000 L/h) water circulation
Filtration options: PP cotton cartridge filter / stainless steel mesh filter
Tuya app control
Voltage options: 220-240 V / 50 Hz (EU plug)

Contact Us For Pricing

Pricing is quoted per project — tell us your water volume, ambient temperature, target temperature and voltage and we will recommend the right configuration.

View Full Specifications

MOQ 5 units

Technical Data

AC-BI01 Technical Specifications

Specifications may be revised without notice. Every unit is 100% inspected before shipment — not sampling inspection.

Horsepower	1HP / 2HP
Cooling Capacity	2720W / 5200W
Minimum Water Temperature	0℃
Input Power	870W / 1550W
Voltage / Frequency	220-240V / 50Hz (EU plug)
Water Flow Rate	50 L/min (3000 L/h)
Filtration	PP cotton cartridge filter / stainless steel mesh filter (optional)
Refrigerant	R32
Connectivity	Tuya app
Dimensions	60 × 37 × 49 cm / 60 × 55 × 57 cm
Gross Weight	33kg / 45kg
Compressor	GMCC (Panasonic available on request)
Water pump	24V DC brushless pump, 90W
Maximum pump head	10m
Ozone / UV power	5W / 10W
Water inlet / outlet	Customizable to project requirements
Noise level	55-65 dB at 1m
Dimensions with air duct	60 × 47 × 49 cm (1HP)

Product Details

Closer Look

AC-BI01 Built-In Ice Bath Chiller — detail 1

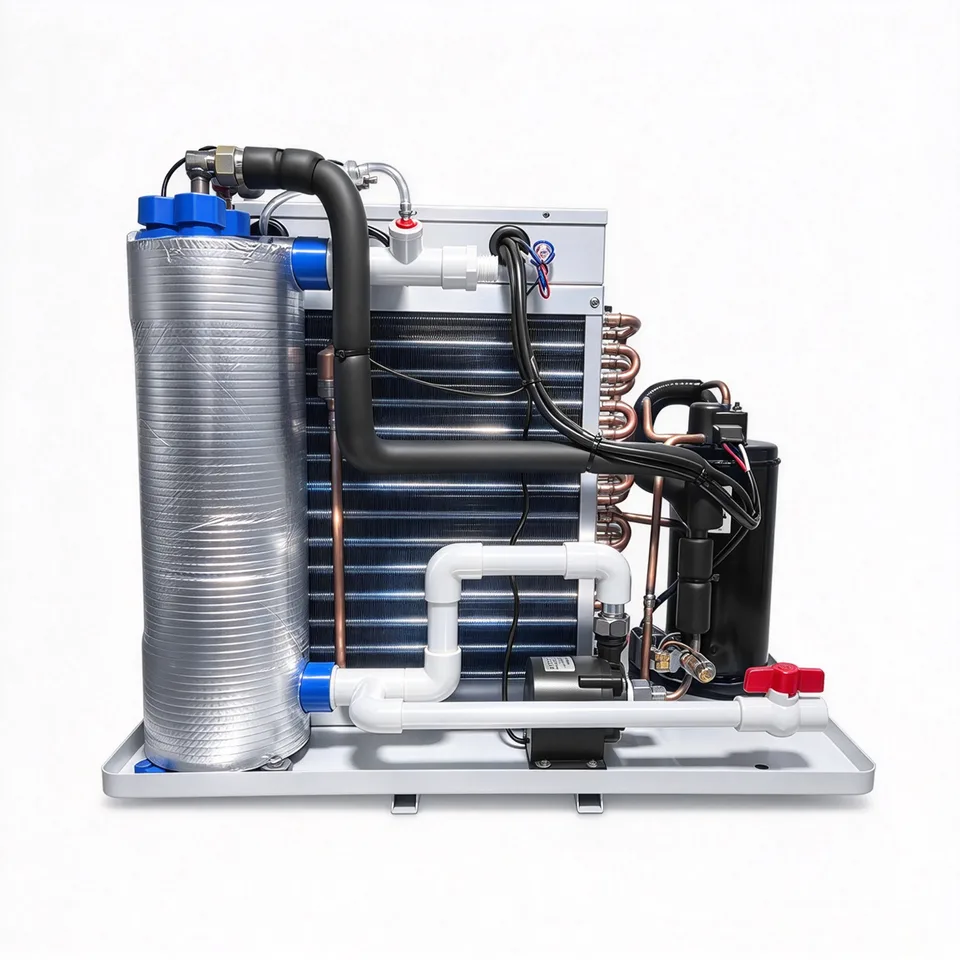

AC-BI01 Built-In Ice Bath Chiller — detail 2

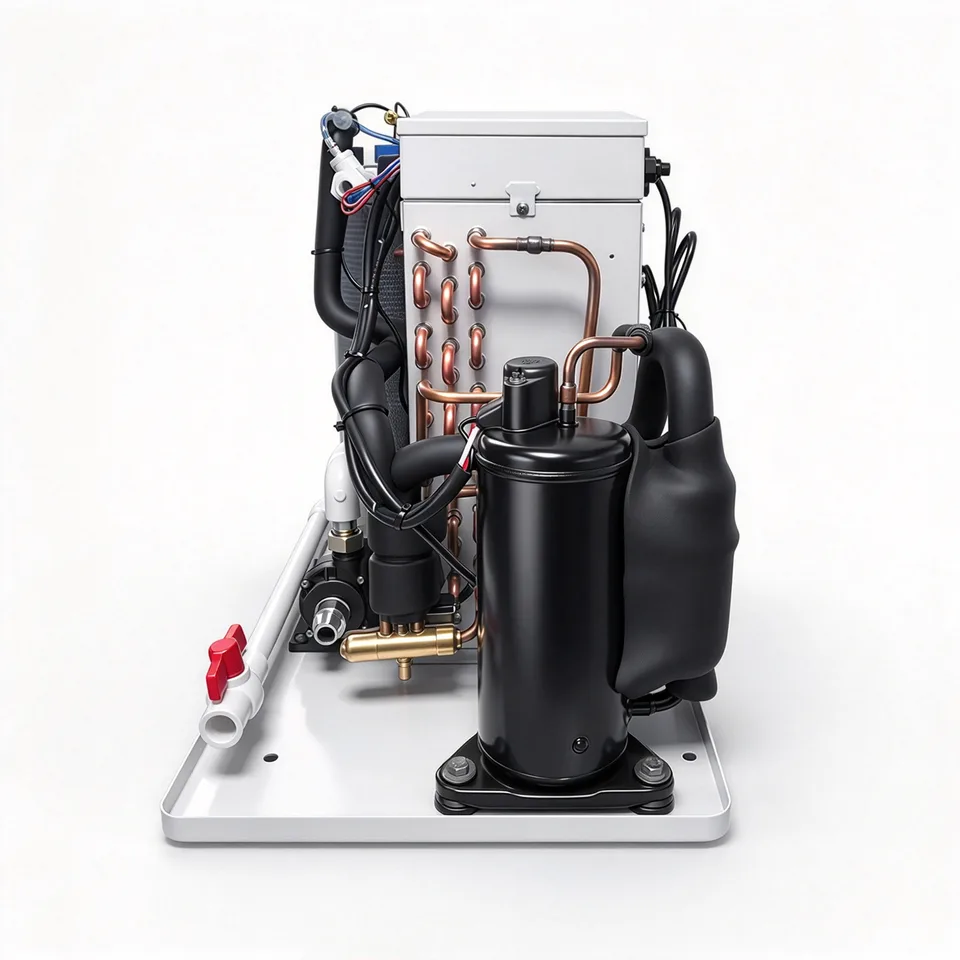

AC-BI01 Built-In Ice Bath Chiller — detail 3

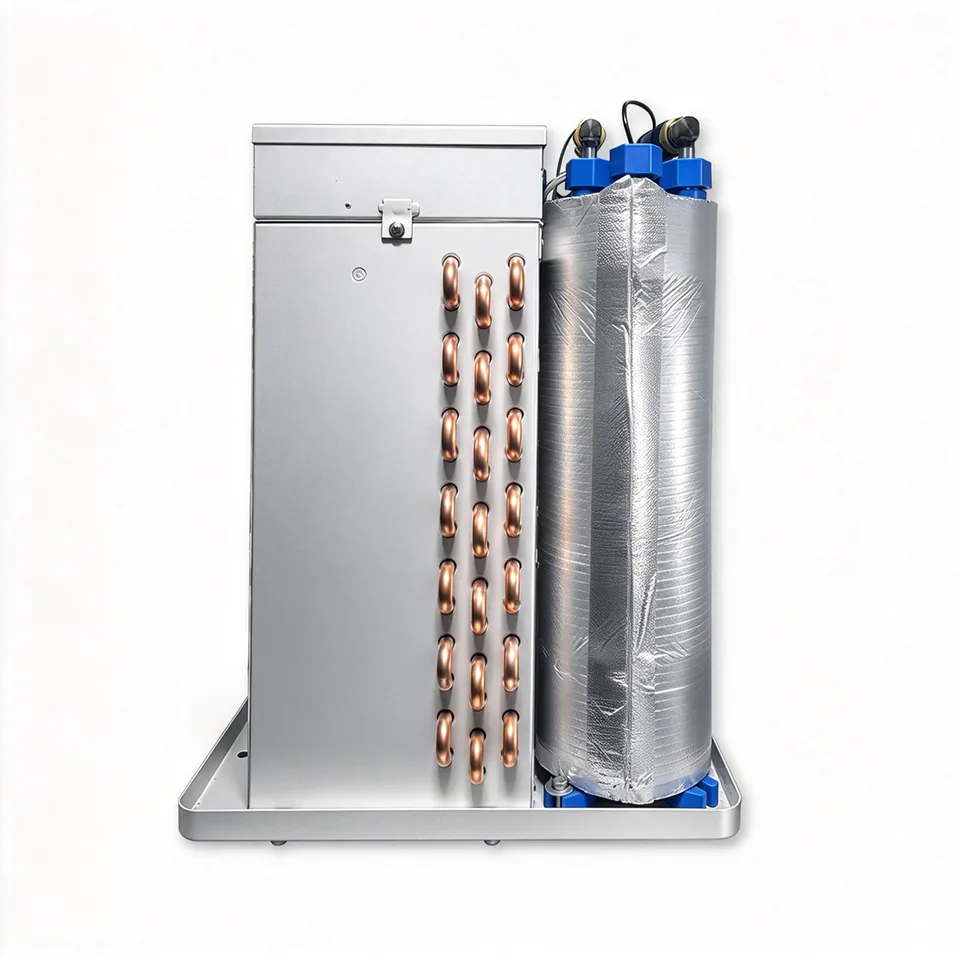

AC-BI01 Built-In Ice Bath Chiller — detail 4

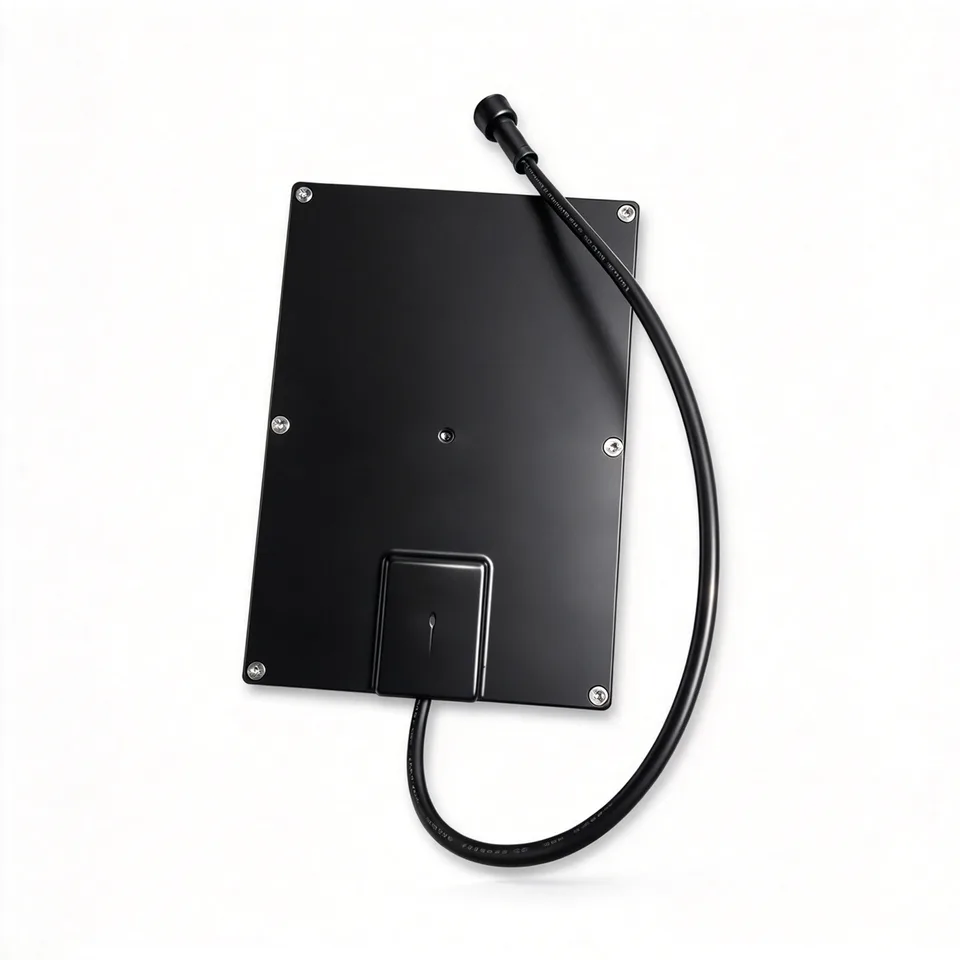

AC-BI01 Built-In Ice Bath Chiller — detail 5

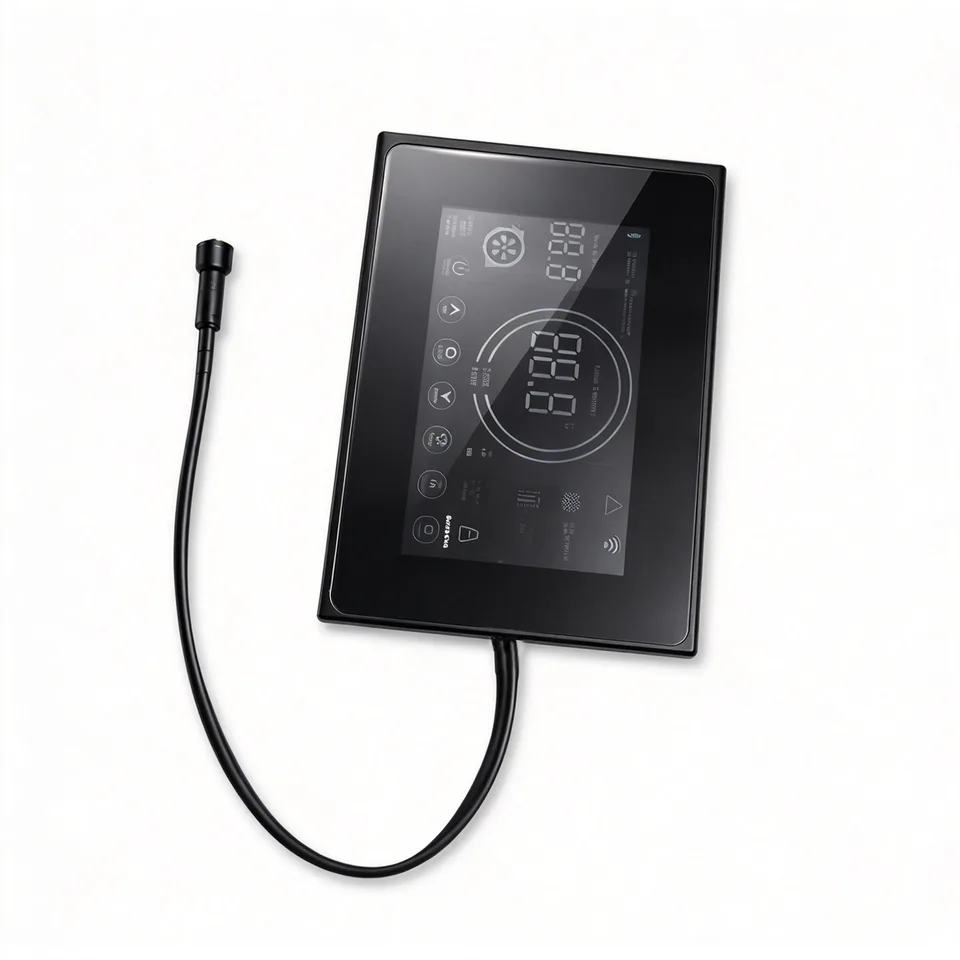

AC-BI01 Built-In Ice Bath Chiller — detail 6

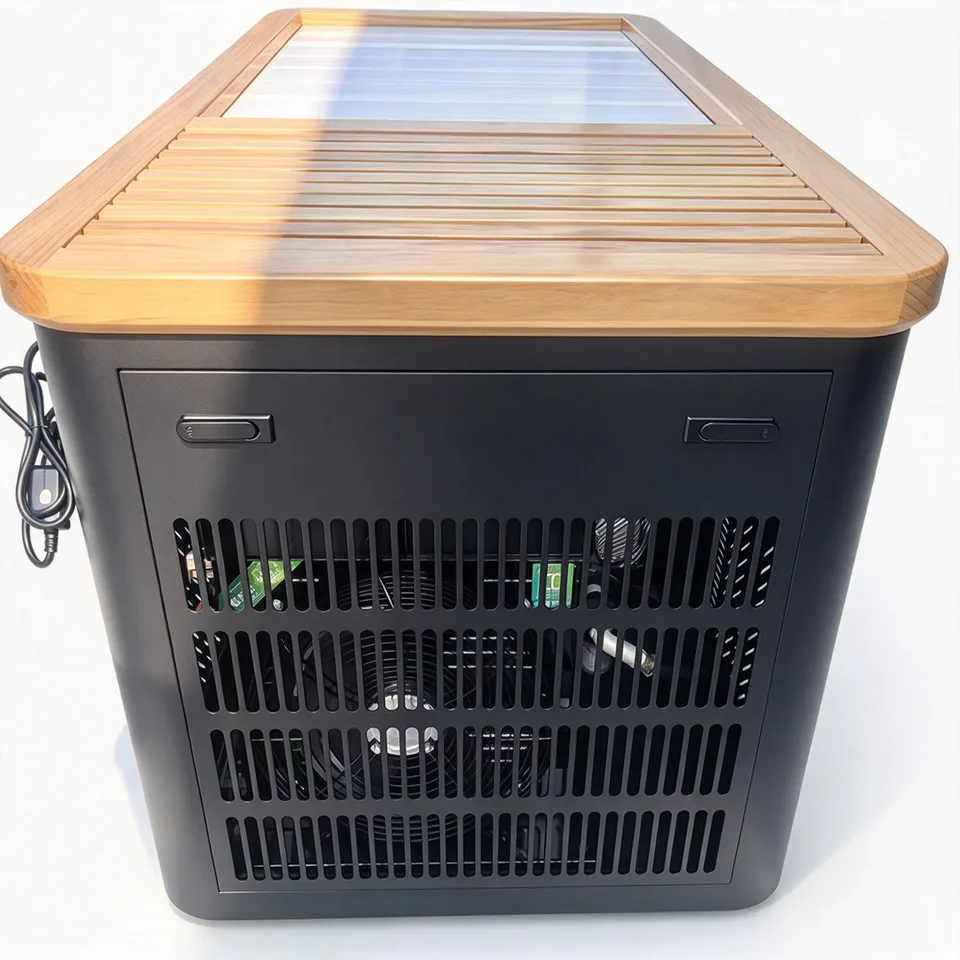

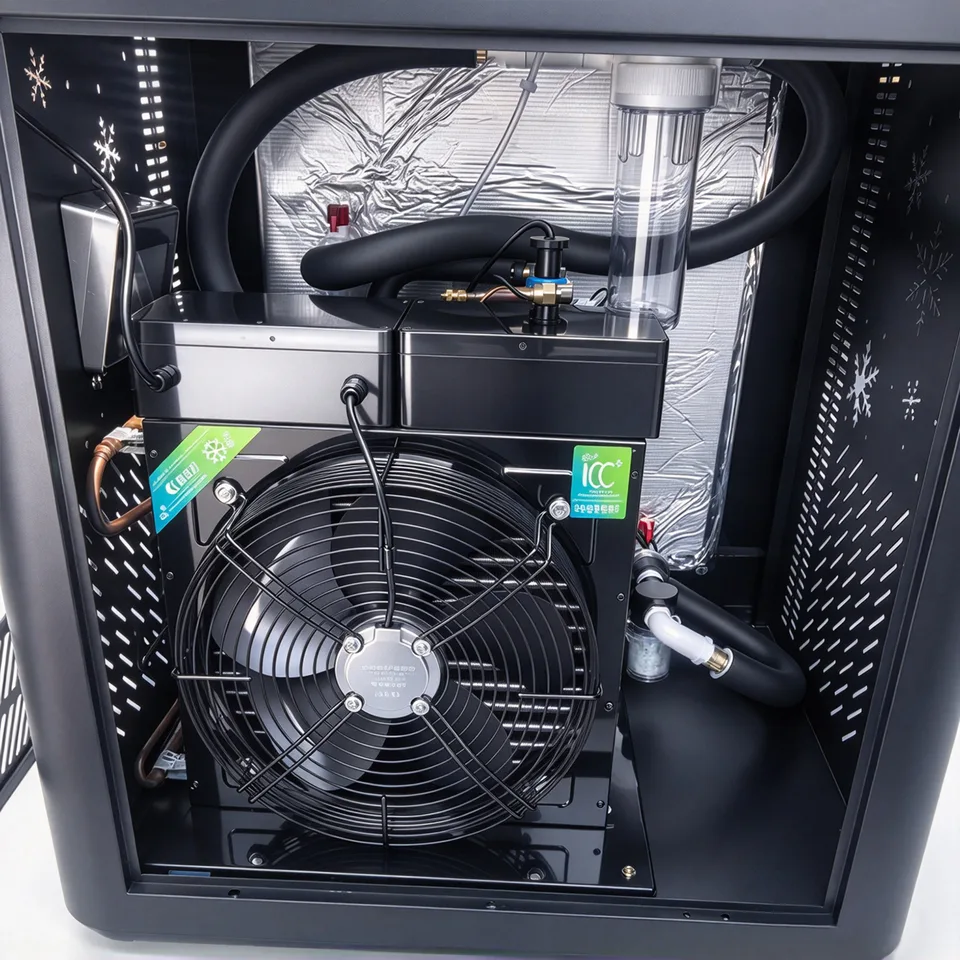

AC-BI01 Built-In Ice Bath Chiller — detail 7

OEM & ODM

Manufacturing, OEM & Compliance Support

Private Label & Packaging

Your logo on the unit, the control panel and the carton.

Built-to-Spec Configuration

Voltage, plug type, compressor, lighting and filtration configured to your market.

Compliance Documentation

Certificates and test reports for the destination market, with factory paperwork support.

Volume & Project Quoting

MOQ, lead time and shipping terms quoted against your volume and destination.

Need a configuration that is not on this page?

FAQ

Ordering & OEM Questions

Which voltage versions are available?: AC-BI01 Built-In Ice Bath Chiller is available in 220-240V / 50Hz (EU plug). Tell us your destination market and we will confirm the plug type and certification for it.
Can this model be customized with a specific layout?: Yes, we can customize the cooling system layout for your cold plunge tub according to your preferences and the actual space available.
